KEL-DPZ Multi-Membrane Cable Entry Plates with High Cable Density / IP66 / UL Type 12 Round & Rectangular Designs

KEL-DPZ cable entry plates are designed to route and seal a large number cables without connectors, hoses or fiber optics (from 1.5 mm to 22 mm in diameter) in limited space.

The KEL-DPZ products are a cost and time saving alternative to traditional cable glands.

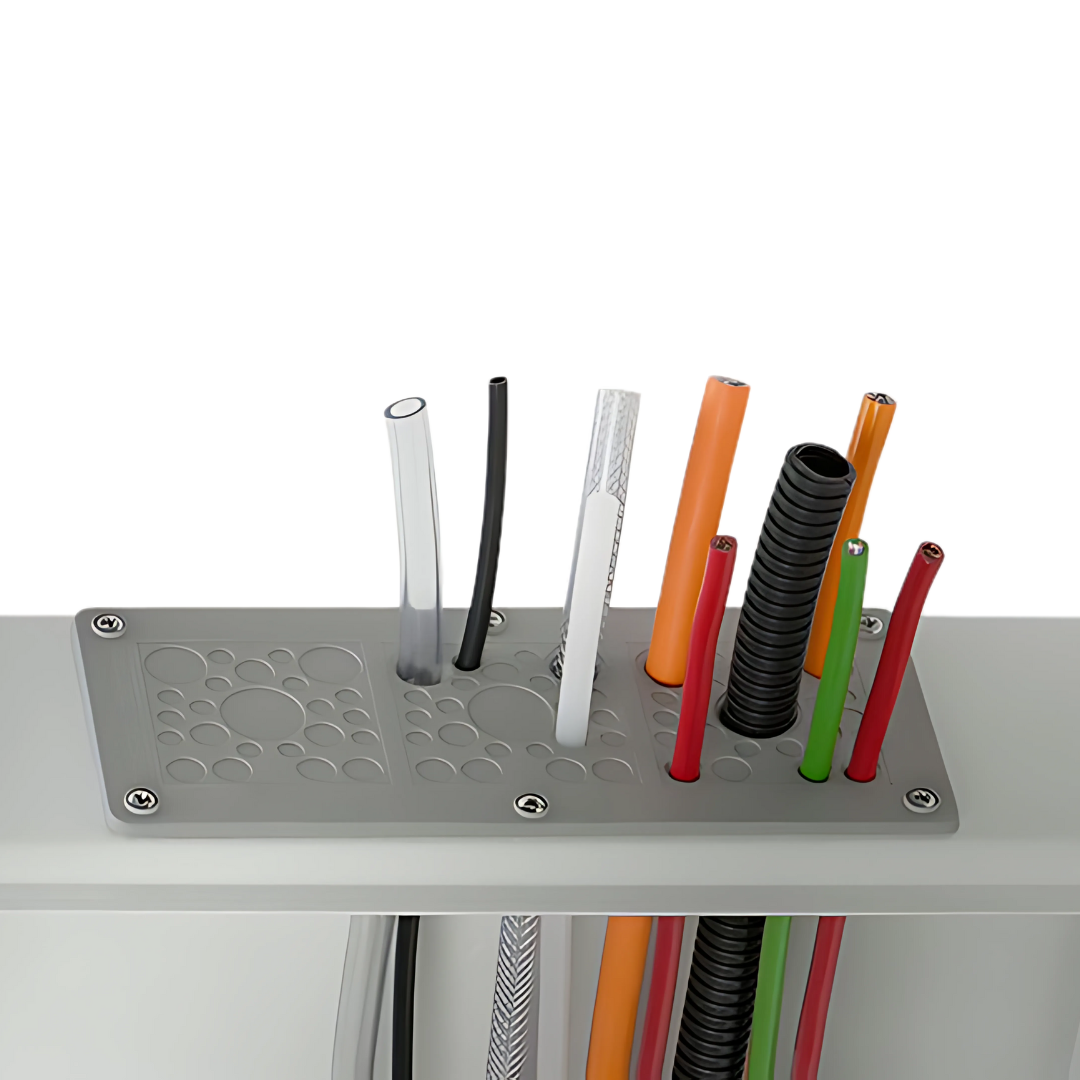

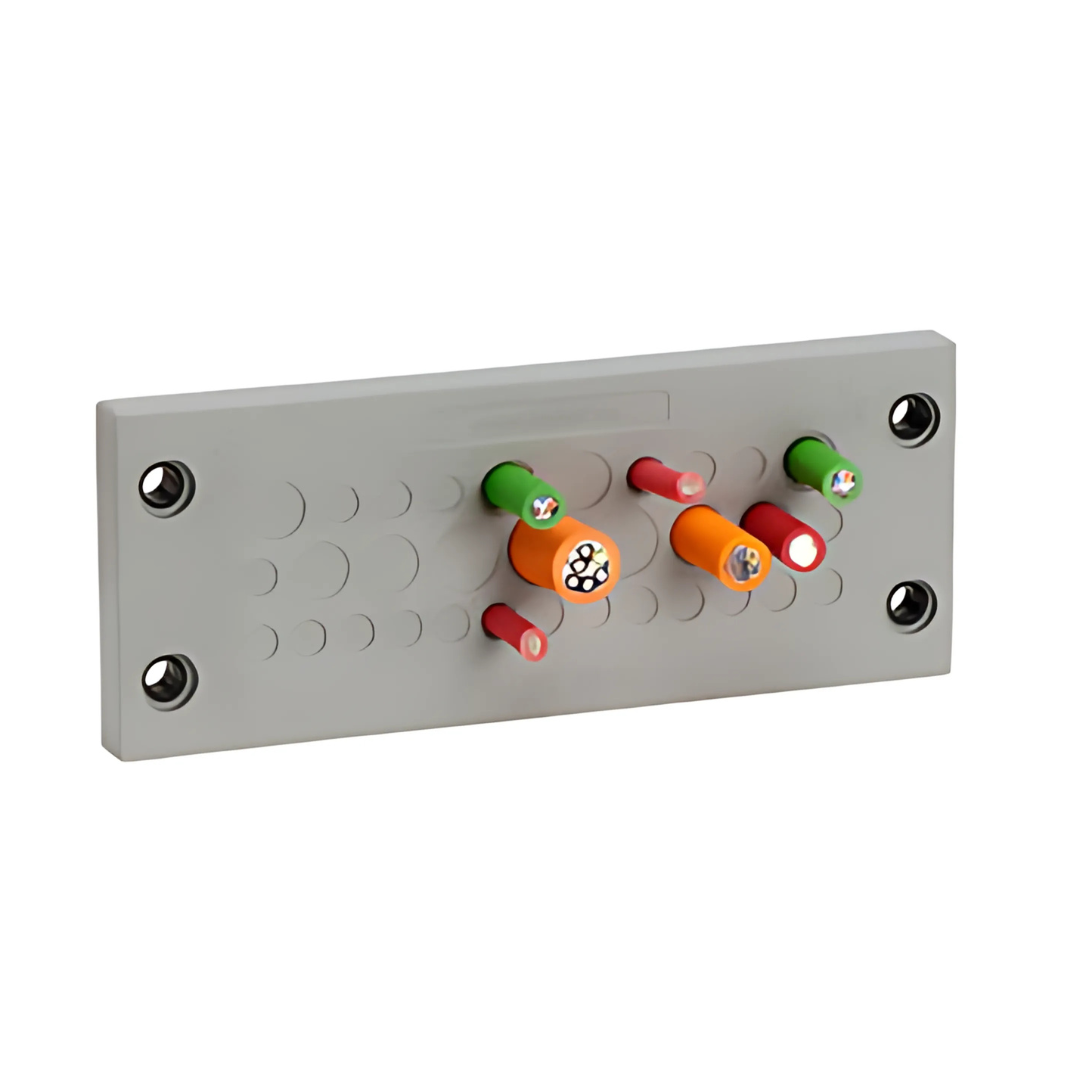

The assembly of the KEL-DPZ with cables or pneumatic hoses can be done quick and easy. Simply make a small hole in the thin membrane, push the cables through. The KEL-DPZ provides strain relief and protection up to IP66 / UL type 12.

The KEL-DPZ matches exactly the cut-out dimensions of 6-, 16- and 24-pin standard industrial connectors. The size KEL-DPZ-B fits on cut-outs 46 × 46 mm. The very compact size KEL-DPZ-E is designed for routing cables in very small space. Through a cut-out of only 18 × 112 mm, up to 21 cables can be easily routed and sealed.

The KEL-DPZ cable entry plates are used with the ST-B plugs for membrane.

Advantages & benefits

• Fast mounting
• High cable density
• Certified protection up to IP66 (acc. to EN 60529)
• Automatic sealing and strain relief for the cable
• Hygienic design – free of dirt-collecting recesses
• Space-saving shape

Sizes and colours available. Please refer to the downloadable data sheet available. For further information please make an enquiry or contact our sales team.
