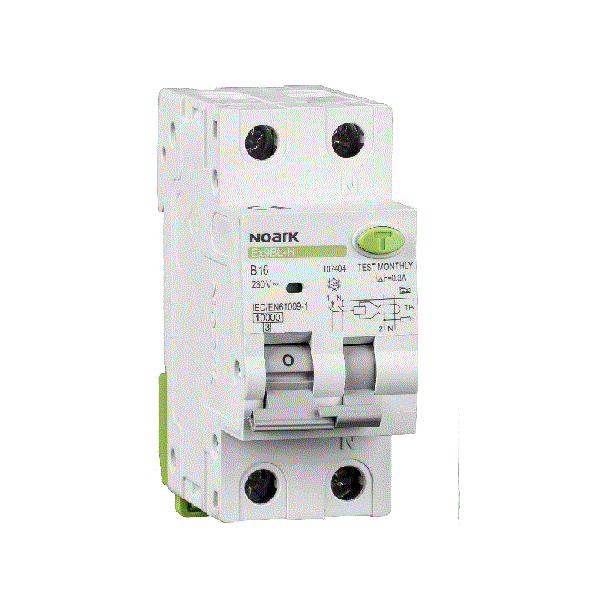

Noark RCBO 6kA Type A Characteristic B and C 2 Pole
Ex9BL residual current circuit breakers are suitable for domestic as well as industrial applications. They are based on combination of residual current device with permanent magnet principle and circuit breaker with thermal overload release and magnetic short circuit current release. It brings the advantage of voltage independent function of the residual current device. Adequate voltage is only necessary when testing the RCBO with the T test button. Magnetic RCBOs should be tested regularly with a period of one month.
Noark RCBO 6kA Type A Characteristic B and C 2 Pole Specifications:
| PARAMETER | VALUE |
|---|---|
| Leakage current type | AC |
| Voltage type | AC |
| Rated fault current | 0.03 |
| Over voltage category | 3 |
| Surge current capacity | 3 |
| Concurrently switching N-neutral | YES |
| Rated short-circuit breaking capacity EN 60898 | 10 |
| Built-in depth | 77 |
| Suitable for flush-mounted installation | YES |
| Anti nuisance tripping version | NO |
| Number of poles (total) | 2 |
| Nominal rated voltage | 230 |
| Nominal rated current | 20 |
| Frequency | 50/60 Hz |
| Release characteristic | B |
| Pollution degree | 2 |
| Number of protected poles | 1 |
| Current limiting class | 3 |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacing | 2 |
