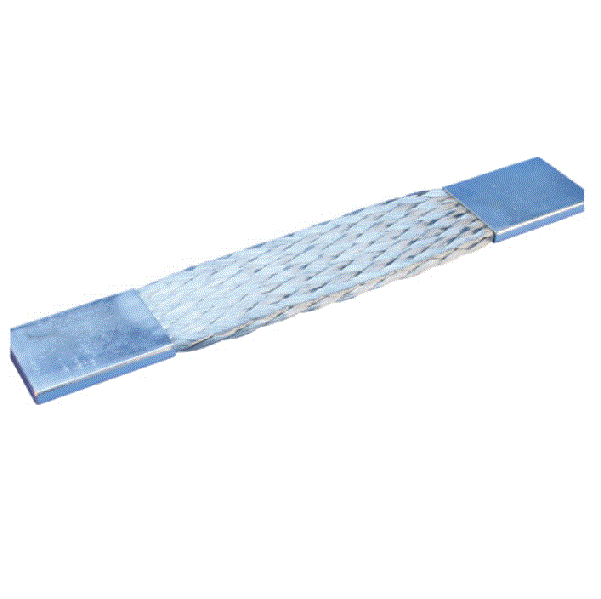

nVent PBC Braided Power Shunts
FEATURES OF PBC Braided Power Shunts
- Ideal for transformer-busduct link
- Solid palms can be drilled to fit customer specific designs
- Extra flexible power connection and good resistance to vibration
SPECIFICATIONS
| Part Number | PBC100X250 |
| Article Number | 564000 |
| Material | Copper |
| Finish | Tinned |
| Wire Diameter | 0.15 mm |
| Cross Section | 100 mm² |
| ∆T 30 K | 349 A |
| ∆T 50 K | 462 A |
| Length (L) | 250 mm |
| A | 35 mm |
| B | 40 mm |
| C | 7 mm |
| 2 Bar Current Coefficient | 1.72 |
| Unit Weight | 0.38 kg |
| Certifications | RoHS |
| Standard Packaging Quantity | 2 pc |
| UPC | 78285679189 |
| EAN-13 | 3479775640006 |
When used in parallel, the two shunts must be spaced with a minimum distance equal to the thickness of the shunt to allow air cooling.
