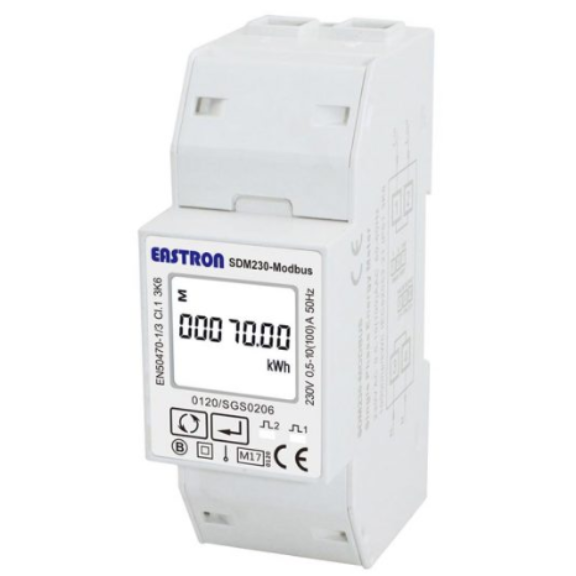

Eastron SDM230M Series DIN Rail MID Certified Metering Single Phase 100A MID
SDM230Modbus is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The SDM230modbus has 15 measured parameters and 4 different kWh measurment modes which has been designed around the development of regeneration, such as solar and battery storage. The means the pulsed output can be configured for the following.
- Import +Export = Total kWh
- Export – Import =Total kWh (Nett)
- Import = Total kWh
- Export = Total kWh
AÂ communication port is provided, RS485 Modbus RTU or M-bus EN13757-3 and Communication parameters are password protected in the setup mode. The SDM230-2T can measure energy from two different power supplies acting as a dual tarriff meter.
Eastron SDM230M Series DIN Rail
