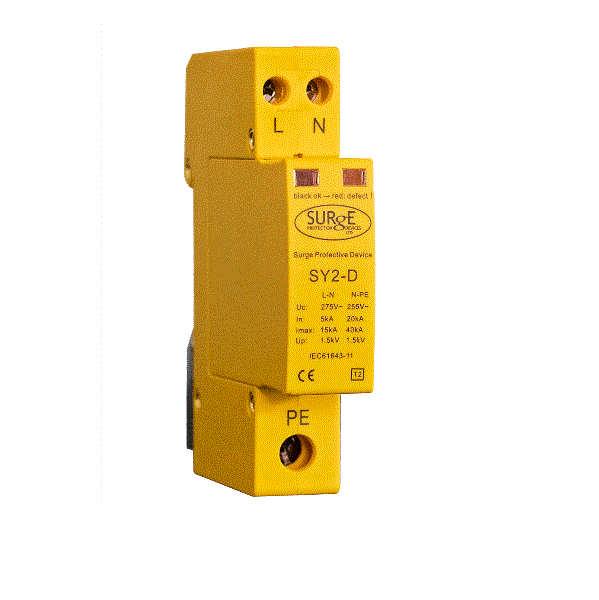

SY2-D – Type 2+3, single module, 2 pole with replaceable modules and window indication
Type 2 single phase surge device ideal for domestic installations.
Fully compliant to BSEN61643-11, BSEN62305 & BS7671.
Visual status indication.
Earth leakage free so may be connected before or after RCD’s, RCBO’s etc.
Can be used on all installation types (TN-S, TNC-S, PME & TT).
Earth wire must be 6mm².
Din rail mountable.
Recommended MCB 32A.
Easy to install, just connect it in parallel to your board.
Manufactured in Europe.
SY2-D – Type 2+3, single module, 2 pole with replaceable modules and window indication
PLEASE NOTE – When carrying out insulation tests, please remove the earth cable to the device, remove the module or test at 250v max. Failure to abide by this advice may damage the device.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
You must be logged in to post a review.
SY2-D – Type 2+3, single module, 2 pole with replaceable modules and window indication
SY2-D – Type 2+3, single module, 2 pole with replaceable modules and window indication
Type 2 single phase surge device ideal for domestic installations.
Fully compliant to BSEN61643-11, BSEN62305 & BS7671.
Visual status indication.
Earth leakage free so may be connected before or after RCD’s, RCBO’s etc.
Can be used on all installation types (TN-S, TNC-S, PME & TT).
Earth wire must be 6mm².
Din rail mountable.
Recommended MCB 32A.
Easy to install, just connect it in parallel to your board.
Manufactured in Europe.
SY2-D – Type 2+3, single module, 2 pole with replaceable modules and window indication
PLEASE NOTE – When carrying out insulation tests, please remove the earth cable to the device, remove the module or test at 250v max. Failure to abide by this advice may damage the device.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
