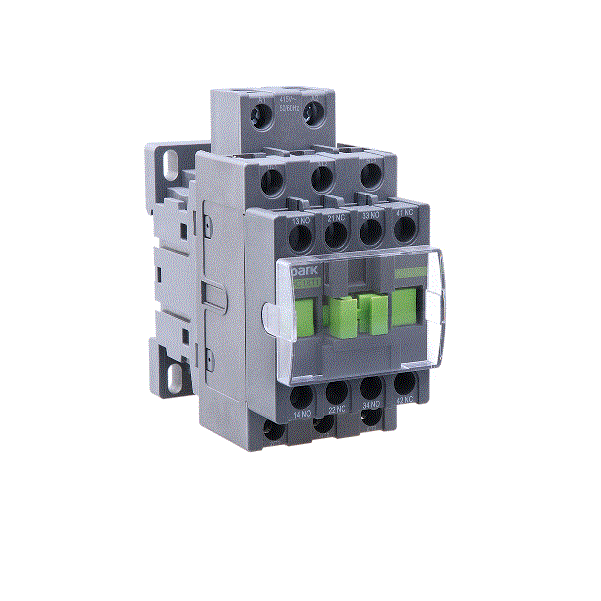

Noark Contactors Ex9C (185/300) 3 Pole 2 NO + 2 NC Contact
Ex9C contactors are intended for various applications including heavy industrial ones. Splitting into four frame sizes brings optimisation of electrical parameters and mechanical dimensions.
All these frame sizes share accessory auxiliary contacts. Overload relays Ex9R differ with the frame sizes in order to fit respective contactor’s of given rated current.
Frame size 18 contains contactor’s with rated currents AC-3 9, 12 and 18 A at 400 V. Size 38 consists of rated currents 25, 32, 38 A. Version 65 is split into currents 40, 50 and 65 A. Finally frame size 100 is covered with rated currents 80 and 100 A.
Main highlights:
- Mounting onto panel with screws
- Front-mounted auxiliary contacts AX42.. as well as side-mounted ones AX44.. can be used
- AC and DC control voltage
- Minimized power consumption of coil
- DC coil technology – no humming noise
- Can be combined with overload relays Ex9R185
Noark Contactors Ex9C (185/300) 3 Pole 2 NO + 2 NC Contact specifications:
| PAREMETER | VALUE |
|---|---|
| Voltage type for actuating | AC/DC |
| Rated operation power at AC-3, 400 V | 55 |
| Rated operation current Ie at AC-4, 400 V | 54 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Rated control supply voltage Us at DC | 220 |
| Rated operation power Ie at AC-4, 400 V | 30 |
| Modular version | NO |
| Rated operation current Ie at AC-1, 400 V | 160 |
| Rated operation current Ie at AC-3, 400 V | 115 |
| Number of normally closed contacts as main contact | 0 |
| Type of electrical connection of main circuit | |
| Rated control supply voltage Us at AC 50HZ | 220 |
