OP-TPISTAT RF Programmable Thermostat

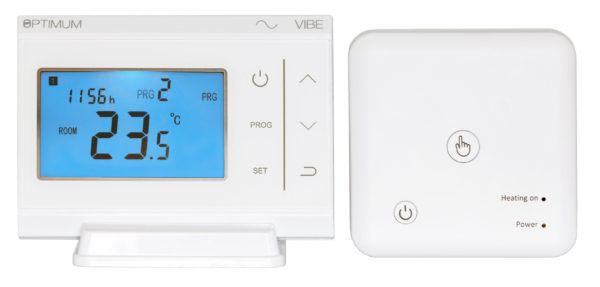

The optimum vibe is a radio frequency battery-powered programmable room thermostat with touch-screen controls, providing six timed temperature periods every 24 hours. The transmitter (Tx) has a large blue backlit display and runs a pre-programmed user adjustable temperature profile. Users can just touch the up or down control icon at any time to manually adjust the current temperature setting.
The receiver (Rx) must be wall-mounted adjacent to the boiler, provides volt-free switching and displays indicator l.e.d. showing power and load status, and has a button for manual operation if required. The control set uses the license-free 868mhz frequency, and is pre-linked in the factory with a unique code.
DIMENSIONS Tx:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 120 X 85 X 22.5 Rx: 85 x 85 x 25
Rx CONNECTIONS:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5 X WIRE-PROTECT CAGE SCREW TERMINALS
RESISTIVE LOAD:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10 AMPERES RESISTIVE @ 230V 50Hz
POWER SUPPLY Tx:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2 x AAA ALKALINE Rx: 230V 50Hz
TEMPERATURE RANGE:                 5—30°C
FROST PROTECTION:                    SET TO OFF, OR USER ADJUSTABLE 5 – 15°C
TEMPERATURE REGULATION:Â Â Â Â Â Â Â Â Â Â Â SELECTABLE: ON/OFF ~ OPTIMISING ~ T.P.I.
DIFFERENTIAL:                         +/- 0.5°C
TIMING ACCURACY:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â (typically +/- 2.5 sec / day)
PROGRAMME CAPACITY:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 6 x USER ADJUSTABLE TEMPERATURE PERIODS
DAY GROUPS:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5 & 2: (WEEKDAY / WEEKEND) or 7: INDIVIDUAL DAY
PROGRAMMING
ADJUSTABLE SETTINGS:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5 TEMPERATURE LEVELS: MEASURED, MAXIMUM, MINIMUM,
DIFFERENTIAL, FROST PROTECTION. BACKLIGHT AUTO or OFF.
DAY SELECTION 5&2 or 7. TEMPERATURE
REGULATION MODE:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â REGULATION MODE: ON/OFF ~ OPTIMISING ~ T.P.I.
OP-TPISTAT RF Programmable Thermostat
